Wheel Modification Primer: What Are J-Value, ET-Value, and PCD?

For car owners new to wheel modification, technical terms like J-value, ET offset, and PCD bolt pattern can be overwhelming. Yet these parameters directly determine whether wheels will fit properly and impact the vehicle’s safety and performance after modification. This article will explain these three core specifications in plain language, helping you navigate wheel upgrades with confidence.
1️⃣ J-Value: The Compatibility Code for Tires and Rims

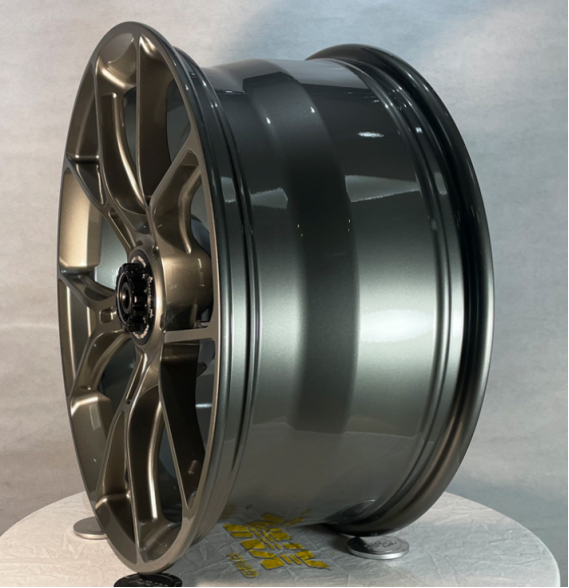

The J-value refers to the width between the bead seats on both sides of the rim, measured in inches. Common markings include 7J, 8.5J, etc. Note that the J-value does not equal the rim’s overall width; the full rim width includes the protruding edges on both sides. The J-value acts as the tire’s “fitment slot,” directly determining the compatible tire width range.

Different J-values correspond to distinct tire width ranges. Below are common matching standards:
6.5J fits tires 195-215mm wide
7.0J fits tires 205-225mm wide
7.5J accommodates tires 215-235mm wide
8.0J accommodates tires 225-245mm wide
8.5J accommodates tires 235-255mm wide
Each J-value corresponds to a recommended tire width. For example, the standard tire width for a 7J rim is 215mm, though 205mm or 225mm tires can also be fitted, resulting in a different sidewall profile. When modifying rims, the J-value can be appropriately increased—such as upgrading from stock 7J to 7.5J or 8J—but the difference should not be excessive. ​
It’s crucial to note that excessively wide J-values can have negative effects: increased fuel consumption and reduced acceleration. Conversely, overly narrow J-values fail to leverage the performance advantages of wider tires. For performance-oriented vehicles like the 86/BRZ or Civic, tires ranging from 235 to 245 in width are generally sufficient for track or mountain driving, typically paired with 8.5J to 9J wheels. However, note that a 7.5J wheel with a 245 tire is already pushing the limits; any wider could risk tire separation.
2️⃣ ET Value: The Key Parameter Determining Wheel Position
The ET value, also known as offset, refers to the distance from the wheel’s centerline to its mounting surface, measured in millimeters (mm). Simply put, the ET value determines the wheel’s position relative to the vehicle body after installation: a smaller ET value pushes the wheel outward toward the vehicle’s body, while a larger ET value pulls the wheel inward.
Most standard passenger cars feature positive ET values, typically ranging from 35 to 42. However, certain vehicles and some SUVs utilize negative ET values. Negative ET allows tires to flare outward, maximizing contact patch area. This, however, increases the vehicle’s turning radius, potentially complicating maneuvers on urban roads.
ET values significantly impact driving stability and cornering traction. Inappropriate ET settings may cause vehicle vibration, tire rubbing against fenders, or suspension issues. When adjusting ET, limit each change to 5-10mm.
Calculating ET requires considering the available space within the wheel arch. Measure the distance from the wheel arch to the tire’s outer edge to determine the maximum safe protrusion range for the wheel hub. The ET formula is: ET = Wheel Hub Width (mm) / 2 – Distance from Hub Mounting Surface to Hub Edge (mm). ​
It’s important to note that ET values affect steering feel: For the same vehicle, identical size, and J-value, a smaller ET value results in heavier steering feel, while a larger ET value yields lighter steering. Common “universal fit” specifications include 8J ET45, 8J ET38, and 8J ET35. These parameters strike a balance between performance and safety in most scenarios.
3️⃣PCD Bolt Pattern: The Connection Code Between Wheel Hub and Vehicle

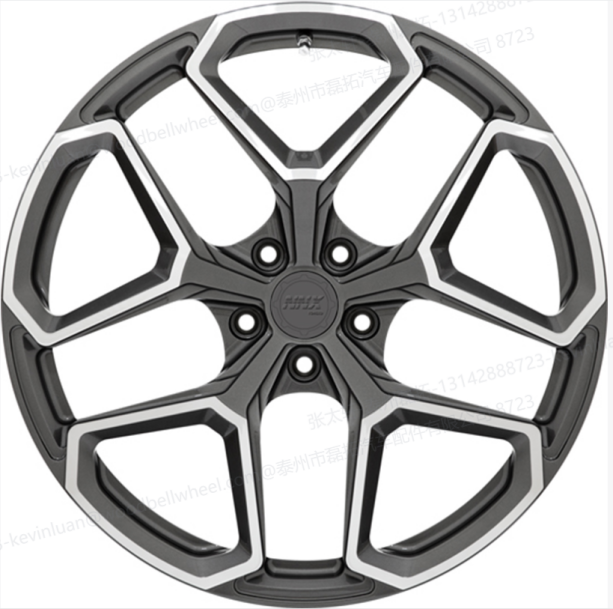

PCD stands for Pitch Circle Diameter, referring to the diameter of the imaginary circle formed by the center mounting bolts on the wheel hub, measured in millimeters (mm). PCD values are typically expressed as “number of holes x diameter,” such as “5×114.3,” indicating five mounting bolts forming a circle with a diameter of 114.3mm.

The PCD value is the critical parameter determining whether a wheel can be installed on a vehicle, and it often varies across different vehicle brands and models:
Volkswagen Lavida, Bora, Polo: 5×100
Volkswagen Sagitar, Magotan, Passat: 5×112
Toyota Crown, Camry: 5×114.3
Most BMW models: 5×120
Most Mercedes-Benz models: 5×112 or 5×130
Measuring PCD varies by bolt pattern: For 4-bolt wheels, directly measure the distance between diagonally opposite bolts with a ruler. For 5-bolt wheels, measure the distance between the two closest bolts and divide the measurement by 0.58775 to obtain the PCD.
When replacing wheels, it’s best to choose products matching the original vehicle’s PCD value. While adapters or flanges can alter the bolt pattern, such modifications pose safety risks and are not recommended. Theoretically, more bolt holes enhance a wheel’s load-bearing capacity: passenger cars typically have 4-5 holes, minibuses and light trucks usually have 6-8 holes, while heavy trucks can feature up to 10 holes.
4️⃣Parameter Synergy: How the Three Factors Jointly Influence Wheel Selection
J-value, ET-value, and PCD bolt pattern do not exist in isolation but are interrelated, collectively impacting wheel compatibility. For instance, when increasing the J-value (widening the wheel), the ET-value must be adjusted accordingly; otherwise, the tire may rub against the fender or suspension components.
If the original vehicle uses 7J wheels and you upgrade to 9J wheels, the wheels will protrude approximately 2.54cm on each side (calculated as: (9J-7J) × 2.54cm/2). At this point, you must consider whether the ET value needs adjustment and whether the wheel wells have sufficient space to accommodate the wider wheel and tire combination.
Center bore diameter (CB), though not one of the three parameters in the title, remains a critical matching specification. As the key point connecting the wheel to the vehicle, its dimensions must match the original equipment. Otherwise, even if other parameters align, the wheel may not be securely mounted, posing a safety hazard.
5️⃣Modification Precautions and Practical Recommendations
Wheel Size Upgrade Restrictions: Wheel size modifications must not exceed the original vehicle size by more than 2 inches. The difference in diameter between the old and new wheels should be controlled within ±3%. Otherwise, it may cause inaccurate speedometer readings and potentially scrape vehicle components. Generally, upgrading by 1 inch larger than the factory size is considered appropriate.
Parameter Verification Method: Before purchasing wheels, always consult the vehicle manual or use professional tools to measure original specifications. Avoid selecting based solely on appearance.
Professional Inspection: After wheel replacement, always perform a four-wheel alignment to ensure driving stability.
Brand Selection: Prioritize reliable brand products, as wheel quality directly impacts driving safety.
Comprehensive Consideration: Balance performance and comfort based on your driving needs during modifications. Narrower tires may affect handling, while wider tires may compromise comfort.
Mastering the secrets of J-values, ET values, and PCD bolt patterns not only helps you avoid common wheel modification mistakes but also enables precise product selection tailored to your needs. Remember, perfect wheel modifications must be both aesthetically unique and safely reliable. If uncertain about parameter compatibility, always consult professionals or trusted modification shops to ensure every upgrade brings peace of mind and satisfaction.
